Sheet Pile Wall by GEO Tools

GEO Tools in ELPLA package (ELastic PLAte) is a program for analyzing different problems in geotechnical engineering. One of them is the analysis of sheet pile wall in stratified soil. There are five types of sheet piles available in GEO Tools depending on the depth of the excavation and the way the sheet pile is analyzed:

1. Cantilever sheet pile wall.

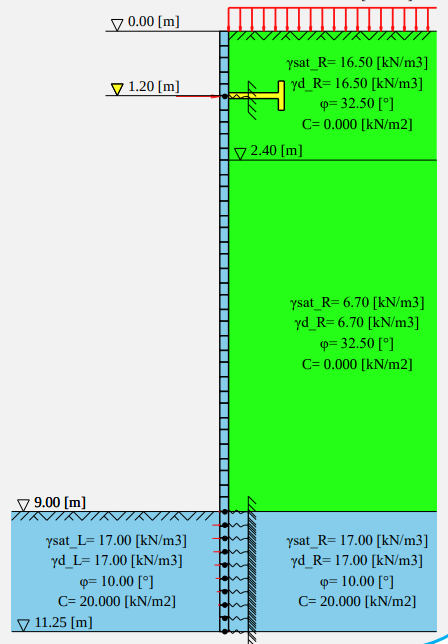

2. Anchored sheet pile wall with free earth support.
3. Anchored sheet pile wall with fixed earth support (Blum's method).
4. Anchored sheet pile wall with fixed earth support (Equivalent beam method).
5. Anchored sheet pile wall with fixed earth support (Bowles method).

There are detailed explanations with 13 examples in a book to verify and illustrate the five types of sheet piles available in GEO Tools.
